foil floor heater,underfloor heating foil,foil heater

FOB Price:

US 8.5-150 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,PAYPAL

Brand:

SENPHUS

Products Model:

SHHM-100-2.5M2

Products Details
Company Profile

Quick Details

Brand Name: SENPHUS

Model Number: SHHM-100-2.5M2

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: PE film ,box , pallet or wooden case or customized
Delivery Detail: according to order quantity

Specifications

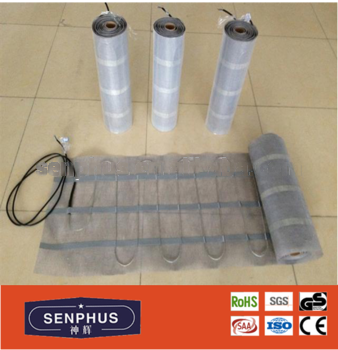

foil floor heater,underfloor heating foil,foil heater

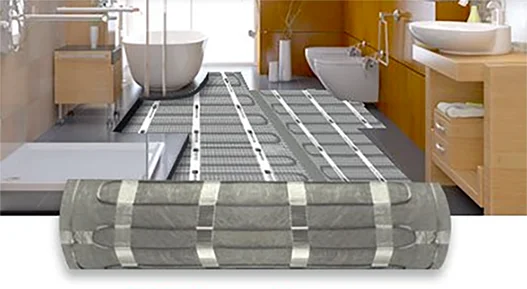

The foil heater safely heats under most wooden and floating floors. This underfloor heating foil can also be used to safely heat under carpet, vinyl and other resilient floors .
Simple to install, the foil heaters design promotes even warmth from beneath your flooring, eradicating problems with hot and cold spots. It can be conveniently installed under the floor finish in both dry and wet areas without the need for additional earth grids.
The underfloor heating foil is using thermal and reflective reinforced aluminium foil that helps in conserving heating energy. Improved savings can also be achieved by using the foil heater in conjunction with Insulation Board as it dramatically reduces heat up times of your underfloor heating system.

Features and benefits

Installed directly under floor finish; no self-levelling required
Fully earthed flat aluminium foil won’t raise floor levels
Wire based system can be adapted to fit around objects
Great for heating under floating floors such as laminate and hardwood.
15-Year Warranty

100w/sqm foil floor heater specification :

Type	Voltage	Rated power	Resistance @20oC+10/-5%	Mat size
Type	V	W	Ω	m
SHHM-100-1.0M2	120	100	144	0.5X2.0
SHHM-100-1.5M2	120	150	96	0.5X3.0
SHHM-100-2.0M2	120	200	72	0.5X4.0
SHHM-100-2.5M2	120	250	57.6	0.5X5.0
SHHM-100-3.0M2	120	300	48	0.5X6.0
SHHM-100-3.5M2	120	350	41.1	0.5X7.0
SHHM-100-4.0M2	120	400	36	0.5X8.0
SHHM-100-4.5M2	120	450	32	0.5X9.0
SHHM-100-5.0M2	120	500	28.8	0.5X10.0
SHHM-100-6.0M2	120	600	24	0.5X12.0
SHHM-100-7.0M2	120	700	20.57	0.5X14.0
SHHM-100-8.0M2	120	800	18	0.5X16.0
SHHM-100-9.0M2	120	900	16	0.5X18.0
SHHM-100-10.0M2	120	1000	14.4	0.5X20.0
SHHM-100-12.0M2	120	1200	12	0.5X24.0

Note: Voltage, Power, Square meter ,cable color ,mesh color , with glue or without adhesive , text on adhesive tape or text on the cable, ect, can be designed according to customer's requirement. eg: 110V-240V , 100w/m2 - 200w/m2 , 1sqm - 15sqm ect .

floor heater package :
